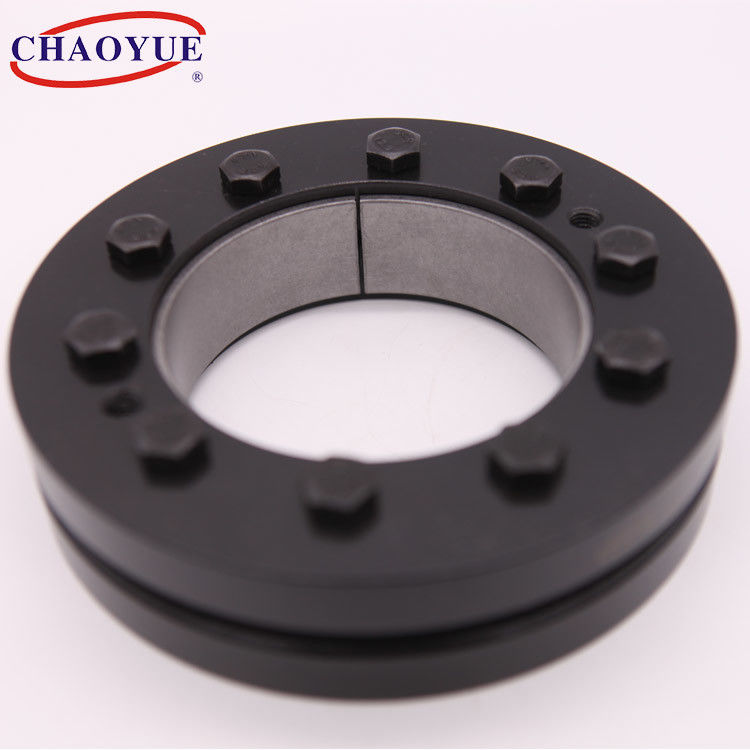

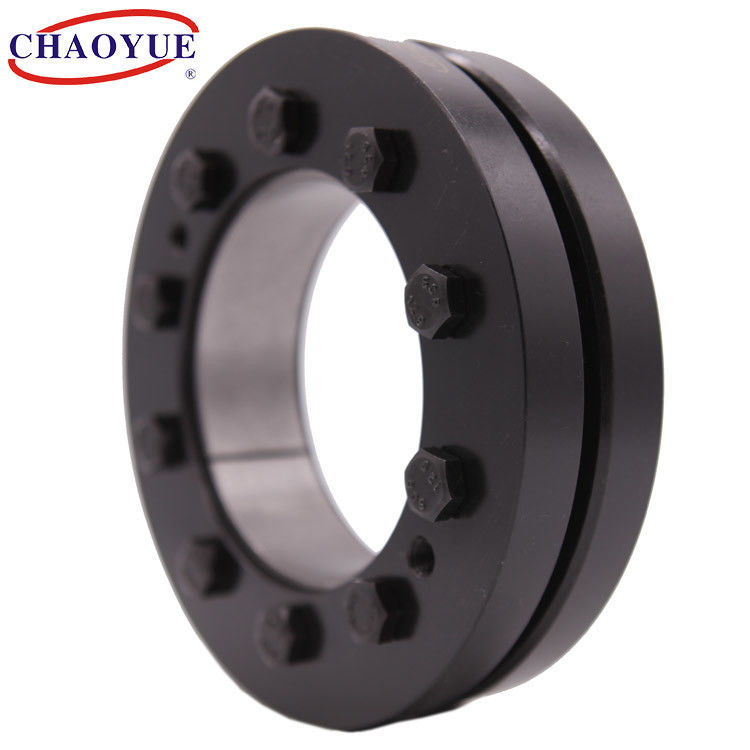

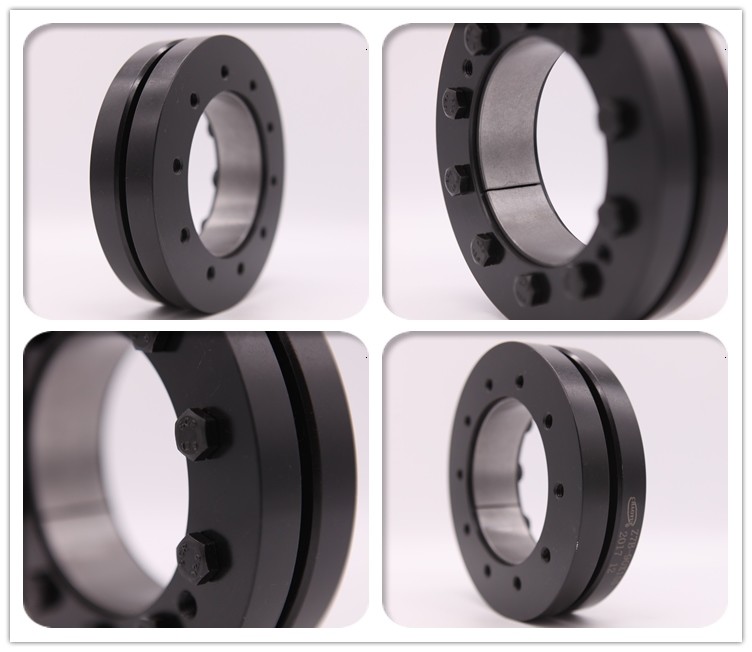

4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushings
4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushings 4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushings 4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushings

4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushing

Detail produk:
Tempat asal: Shaanxi, Tiongkok
Nama merek: CHAOYUE
Nomor model: Z7B
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: USD 10.00 - 60.00 / pc
Kemasan rincian: Kotak karton atau kotak kayu tergantung pada ukuran produk
Waktu pengiriman: 1 - 3 minggu
Syarat-syarat pembayaran: T / T
Menyediakan kemampuan: 500 Pcs per bulan
Hubungi sekarang

Informasi Detail
Ukuran Bore: 24 - 125 mm Diameter luar: 50 - 215 mm
Ketebalan: 18 - 53 mm Bobot: 0,2 - 8,3 kg
momen: 0,17 - 15 kN.m baut: M5 - M10
Menyoroti:

4.75kN.m Shaft Clamping Elements

,

90mm bore Shaft Clamping Elements

,

90mm bore keyless taper lock bushing

Deskripsi Produk

Perangkat pengunci poros Z7B memiliki kunci daya 24mm hingga 80mm



Contoh Pemasangan

4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushing 0

Dimensi Dasar [mm] Baut Nilai Beban Torsi Kencangkan Baut
[Nm]		 Bobot
[kg]
d D dw L H e d1 tidak Gaya Aksial
[kN]		 toruqe
[kN.m]
24 50 19 14 18 2 M5 6 17 0.17 5 0.2
24 50 20 14 18 2 M5 6 21 0.21 5 0.2
24 50 21 14 18 2 M5 6 23 0,25 5 0.2
30 60 24 16 20 2 M5 7 25 0,3 5 0,3
30 60 25 16 20 2 M5 7 27 0.34 5 0,3
30 60 26 16 20 2 M5 7 29 0.38 5 0,3
36 72 28 18 22 2 M6 5 31 0,44 12 0.4
36 72 30 18 22 2 M6 5 38 0,57 12 0.4
36 72 31 18 22 2 M6 5 40 0.63 12 0.4
44 80 34 20 24 2 M6 7 41 0,71 12 0.6
44 80 35 20 24 2 M6 7 44 0,78 12 0.6
44 80 36 20 24 2 M6 7 47 0,86 12 0.6
50 90 38 22 26 2 M6 8 49 0,94 12 0.8
50 90 40 22 26 2 M6 8 58 1.16 12 0.8
50 90 42 22 26 2 M6 8 65 1.38 12 0.8
55 100 40 23 29 3 M6 8 55 1.16 12 1.1
55 100 45 23 29 3 M6 8 67 1.52 12 1.1
55 100 48 23 29 3 M6 8 78 1.88 12 1.1
62 110 48 23 29 3 M6 10 73 1.75 12 1.3
62 110 50 23 29 3 M6 10 80 2 12 1.3
62 110 52 23 29 3 M6 10 86 2.25 12 1.3
68 115 50 23 29 3 M6 10 74 1.85 12 1.4
68 115 55 23 29 3 M6 10 91 2.5 12 1.4
68 115 60 23 29 3 M6 10 105 3.15 12 1.4
75 138 55 25 31 3 M8 7 87 2.4 29 1.2
75 138 60 25 31 3 M8 7 106 3.2 29 1.2
75 138 65 25 31 3 M8 7 121 3.95 29 1.2
80 145 60 25 31 3 M8 7 106 3.2 29 1.9
80 145 65 25 31 3 M8 7 120 3.9 29 1.9
80 145 70 25 31 3 M8 7 131 4.6 29 1.9
90 155 65 30 38 4 M8 10 146 4.75 29 3.3
90 155 70 30 38 4 M8 10 171 6 29 3.3
90 155 75 30 38 4 M8 10 193 7.25 29 3.3
100 170 70 34 43 4,5 M8 12 171 6 29 4.7
100 170 75 34 43 4,5 M8 12 200 7.5 29 4.7
100 170 80 34 43 4,5 M8 12 225 9 29 4.7
110 185 75 39 49 5 M10 9 192 7.29 58 5.9
110 185 80 39 49 5 M10 9 225 9 58 5.9
110 185 85 39 49 5 M10 9 254 10.8 58 5.9
125 215 85 42 53 5.5 M10 12 258 11 58 8.3
125 215 90 42 53 5.5 M10 12 288 13 58 8.3
125 215 95 42 53 5.5 M10 12 315 15 58 8.3
